This manual covers basic VoIP SIP settings in the Hikvision DS-QAZ1325G1T device with firmware version V1.3.6 build 241101.
In addition, for the speaker to communicate with Safestar, it is necessary to correctly configure the network settings on the device (especially the network gateway and DNS)
Speakers with software versions older than (V1.3.6 build 241101) do not work properly with VoIP SIP PBXes. They do not have the option of entering a domain instead of an IP address, which prevents them from communicating with the headquarters.
Technical specifications on the manufacturer’s website: DS-QAZ1325G1T
Description of changes in the loudspeaker software for the version that works with Safestar: PDF – V1.3.6 build 241101
- Zakładka: “Configure” > “SIP” > “SIP Registration”
- “User Account”> ( ID from Safestar )
- “Password”> ( password from Safestar )
- ” Display Name “> (you can repeat the Safestar ID)
- “Server address”> sip.safestar.pl
- “Server port”> 5161

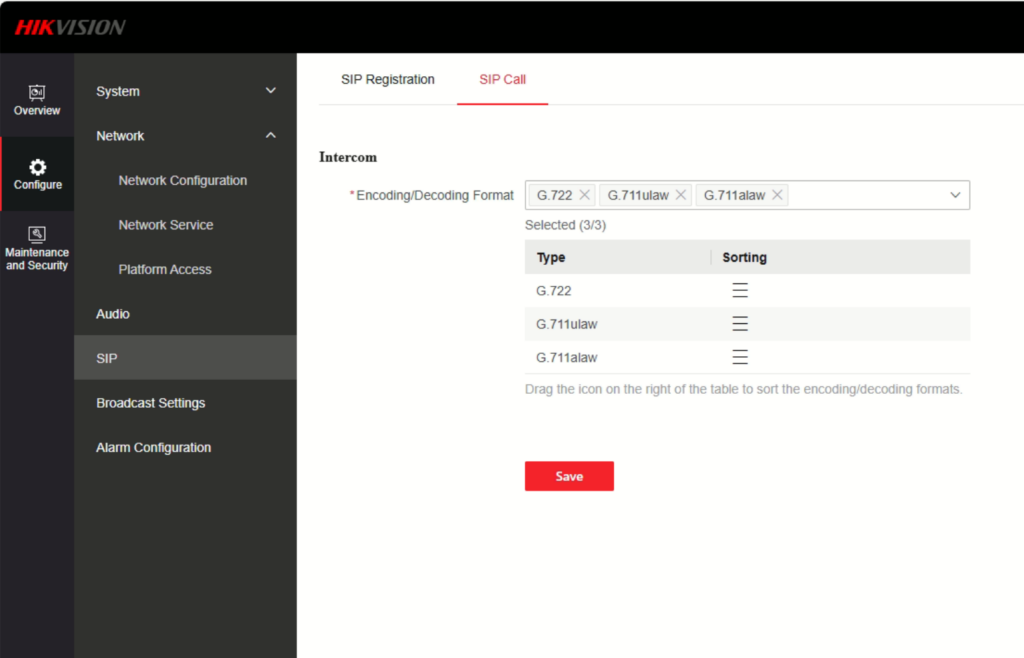

- Zakładka: Zakładka: “Configure” > “SIP” > “SIP Call”
- “Encoding Format”> (G.722 is an audio codec with good sound quality)
- Zakładka: Zakładka: “Configure” > “Network Configuration” > “TCP/IP”
- DHCP (select if network settings are assigned automatically)
- DNS (required for the device to correctly locate the Safestar server domain)
